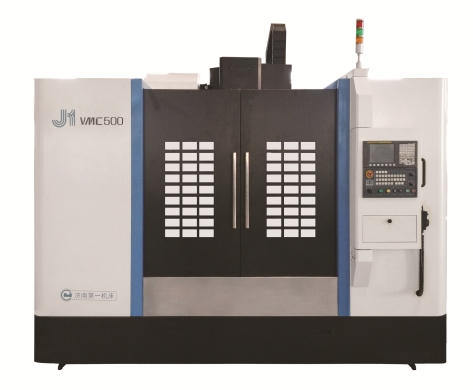

J1VMC500 High efficiency vertical machining center
View:
J1VMC500 vertical machining center is a column fixed layout developed by Jinan No.1 Machine Tool Co., Ltd. It is totally enclosed and protected. X, Y and Z are linear guides. It is a kind of high rigidity, high efficiency and precision products suitable for the machining industry and also for the mold manufacturing industry.
J1VMC500 Efficient Vertical Machining Center Main Specification Sheet (Standard Configuration)
|
項目Item |
J1VMC400 |
J1VMC500 |
J1VMC500B |
||
|
線軌Linear way |
線軌Linear way |
二線一硬軌X/Y-linear & Z-boxing way |
硬軌Boxing way |
||
|
工作臺尺寸（長x寬）(mm) Table size （LxW） |
800x500 |
1000x550 |
1000x500 |
1050x500 |
|
|
主軸端面距工作臺面距離 Distance between spindle nose to table surface |
120-620 |
120-670 |
110-610 |
105/655 |
|
|
主軸最高轉速 Max. spindle speed |
8000 |
||||
|
主軸電機功率 Spindle motor power |
5.5/7.5 |
7.5/11 |
|||
|
主軸中心線至立柱導軌距離Distance From spindle center to column guide |
545 |
595 |
560 |
550 |
|
|
刀柄型號Tool shank type |
BT40 |
||||
|
刀庫容量Tool magazine storage |
24 |
||||
|
X/Y/Z軸行程 X/Y/Z axis travel |
600/500/500 |
800/550/550 |
800/500/500 |
850/500/550 |
|
|
X/Y/Z軸快移速度(m/min) Rapid traverse rate of X/Y/Z axis |
48/48/48 |
36/36/24 |
30/30/18 |
18/18/15 |
|
|
數控系統CNC system |
FANUC 0i-MF |
||||
